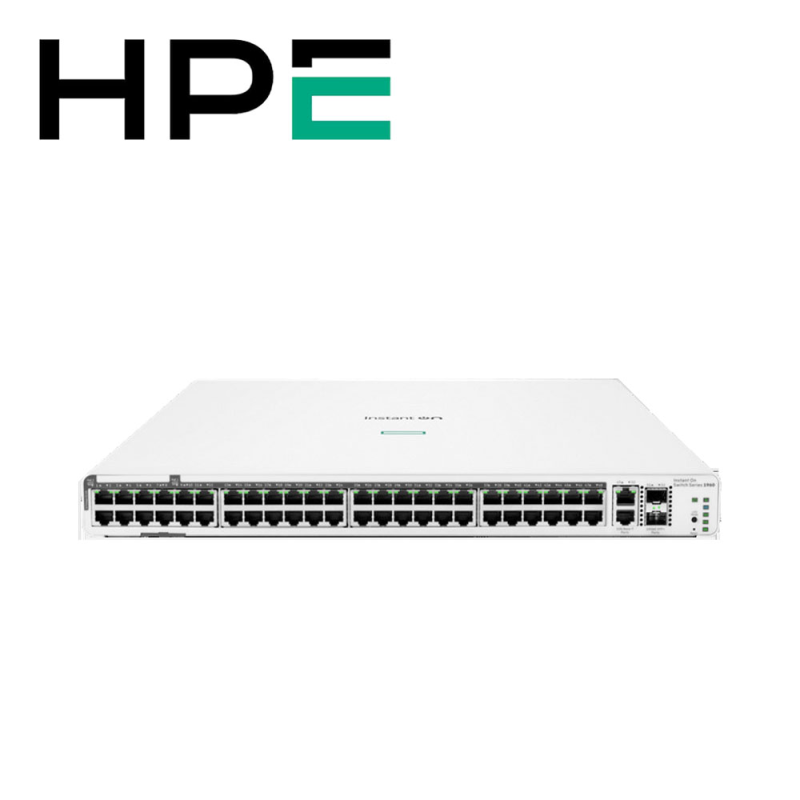

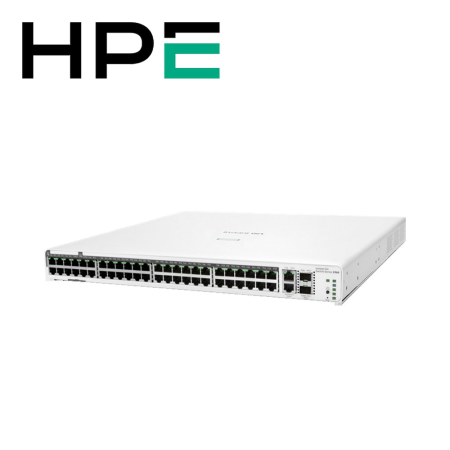

HPE Aruba 1960 JL809A Networking Instant On Switch 600W Fixed Port Web Managed Ethernet Switches

Reference: JL809A

Single-Core ARM v7 Cortex-A9 @800 MHz
Throughput (Mpps): 131 Mpps
Capacity: 176 Gbps
Differentiator Ports: 48 x 1 G
Uplink ports: 2 x SFP+ 2 x 10 GBASE-T
Limited lifetime warranty with 24/7 phone support for the 1st 90 days & chat support for the entire warranty duration by HPE Malaysia

Simplify network management by stacking up to four Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
The Networking Instant On 1960 aggregation switches comes with twelve 10 GBase-T and four SFP+ ports, providing 10 G connectivity to servers, network storage devices and access switches alike.

For environments with heavy bandwidth needs, 10 GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.

1 X Aruba Instant On 1960 Switch Unit
1 X 2-post rack-mount kit
1 X Standard AC power cord
1 X Documentation Kit

Product Features: HPE Networking Instant On Cloud; Web browser; SNMP Manager
CPU / Processor: Single-Core ARM v7 Cortex-A9 @800 MHz
Memory: 1 GB DDR3
Storage: 512 MB NAND flash
Network / Connectivity Technology: Ports48 RJ-45 autosensing
10/100/1000 BASE-T ports with 8 ports of
IEEE 802.af/at/bt CL6 PoE and 40 ports of
IEEE 802.af/at CL4 PoE
Interface: 40 X CL4 PoE Differentiator Ports
8 X CL6 PoE Differentiator Ports
2 x SFP+ Uplink ports
2 x 10 GBASE-T Uplink ports
Battery / Power Supply: Input voltage100-127VAC / 200-240VAC

Power consumption Maximum:
100-127V: 790W
200-220V: 760W

Idle:
100-127V: 60W
200-220V: 100W

PoE capabilityTotal 600 W PoE Power (Up to 480 W of Class 6 or 600 W of Class 4 PoE)
Dimensions: 40.28 x 44.25 x 4.4 cm (15.86 x 17.42 x 1.73 in)
Weight: 4.9 kg (10.8 lb)
