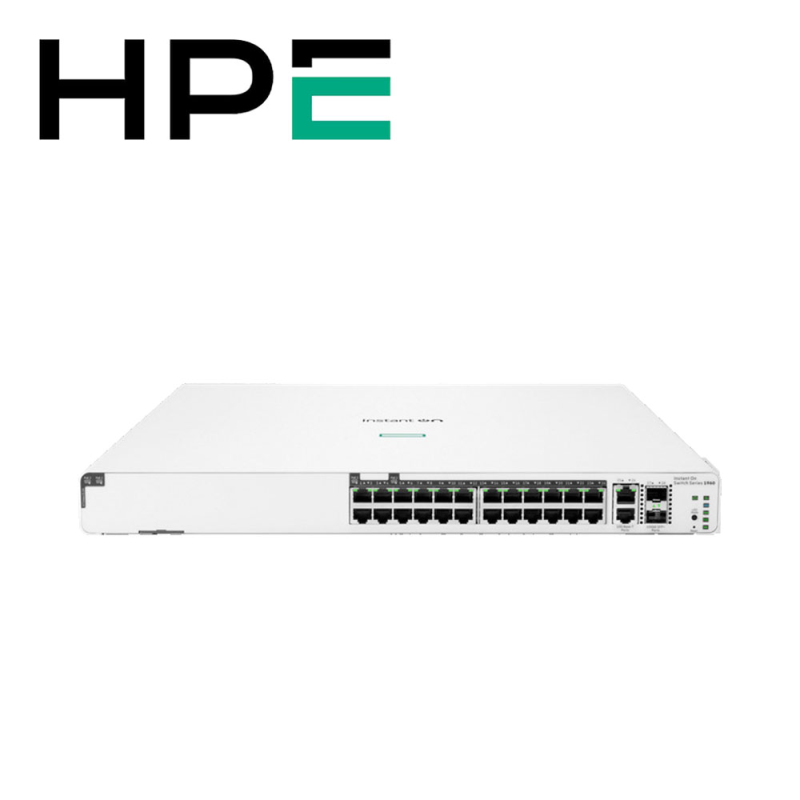

HPE Aruba 1960 JL807A Networking Instant On Switch 370W Fixed Port Web Managed Ethernet Switches

Reference: JL807A

Single Core ARMv7 Cortex-A9 @2Ghz
Throughput (Mpps): 238 Mpps
Capacity: 320 Gbps
Routing Table size: 512 IPv4/IPv6
MAC Address table size: 16,000 entries
Limited lifetime warranty with 24/7 phone support for the 1st 90 days & chat support for the entire warranty duration by HPE Malaysia

Simplify network management by stacking up to four Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
The Networking Instant On 1960 aggregation switches comes with twelve 10 GBase-T and four SFP+ ports, providing 10 G connectivity to servers, network storage devices and access switches alike.

For environments with heavy bandwidth needs, 10 GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.

1 X Aruba Instant On 1960 Switch Unit
1 X 2-post rack-mount kit
1 X Standard AC power cord
1 X Documentation Kit

Product Features: Instant On Cloud; Web browser; SNMP Manager
CPU / Processor: Single-Core ARM v7 Cortex-A9 @800 MHz
Memory: 1 GB DDR3
Storage: 512 MB NAND flash
Network / Connectivity Technology: 100 Mb Latency
< 4.4 uSec

1000 Mb Latency
< 2.2 uSec

10000 Mb Latency
< 1.1 uSec

Throughput (Mpps)
95 Mpps

Capacity
128 Gbps
Interface: 20 X CL4 Gigabit ports
4 X CL6 PoE ports
2 X SFP+ 10GbE ports
2 X 10G BASE-T ports
Battery / Power Supply: AC voltage
100-127VAC / 200-240VAC

Current
5.0A/0.4A

Maximum power rating
100-127V: 500W 200-220V: 480W

Idle power
100-127V: 40W 200-220V: 80W

PoE power
Total 370 W PoE Power (Up to 240 W of Class 6 or 370 W of Class 4 PoE)

Internal power supply
Dimensions: 350.5(d) x 442.5(w) x 43.95(h) mm
Weight: 10.4 lb (4.7 kg)
Remark: – Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included

– Supports table-top mounting

– Supports rack-mounting

– Supports wall-mounting with ports facing either up or down

– Supports under-table mounting using the brackets provided
