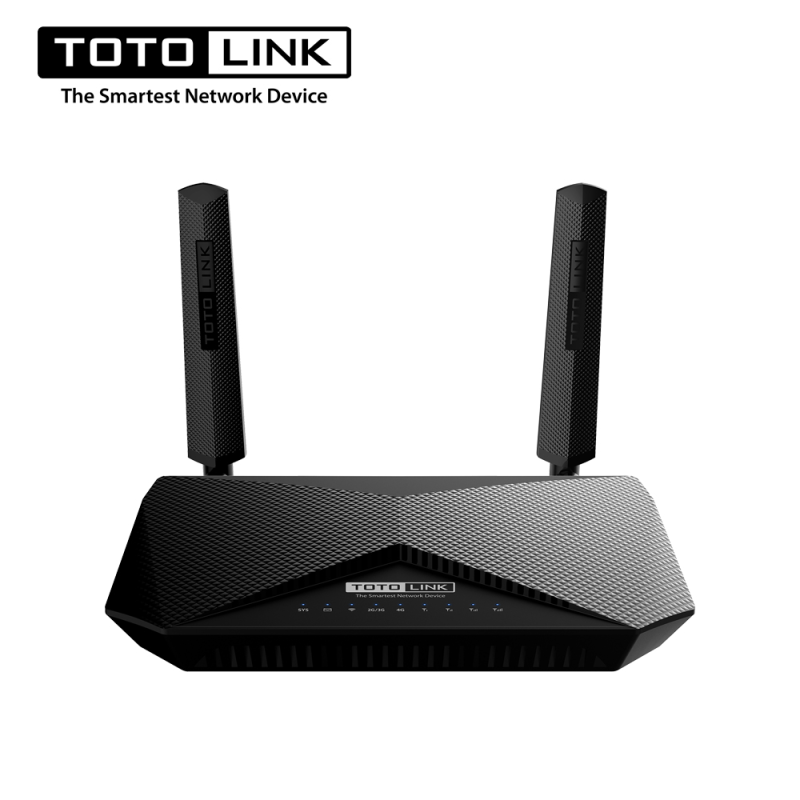

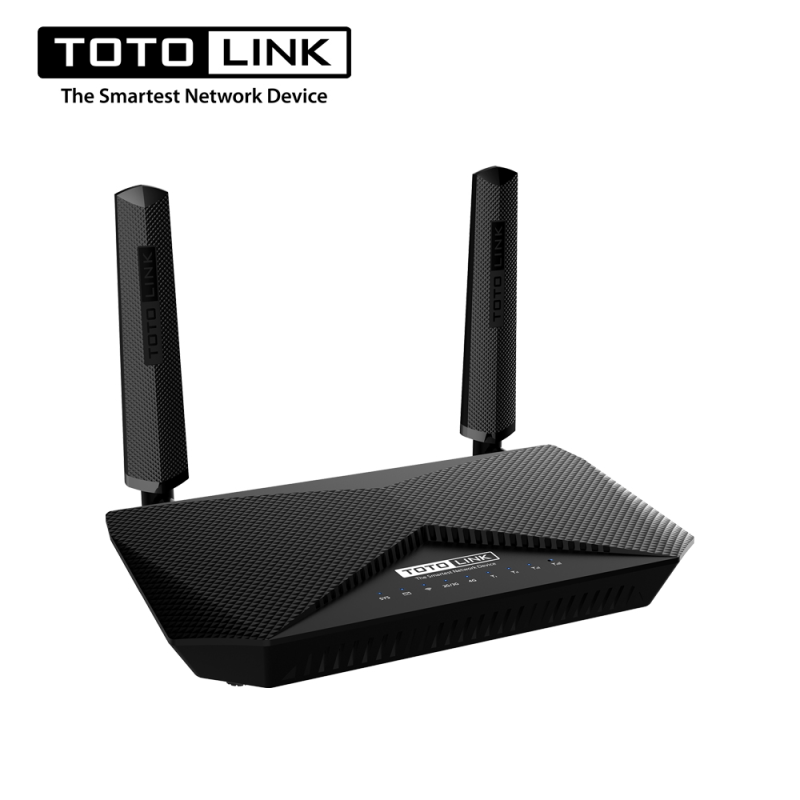

Totolink LR1200 AC1200 Wireless Dual Band 4G LTE Router

LR1200

New product

RM309.00

  • Complies the IEEE 802.11ac/a/b/g/n standards.
  • Creates a simultaneous dual band Wi-Fi network ,with maximum speeds of up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band.
  • Powerful , integrated antennas provide stable wireless connections and better coverage.
  • Supports the TDD-LTE,FDD-LTE,TD-SCDMA, WCDMA,CDMA2000,1xEV-DO,GSM,GPRS,EDGE network type.
  • 3 Years Totolink Warranty

More details

Looking for more stocks? Chat with us now and we will restocks for you now!

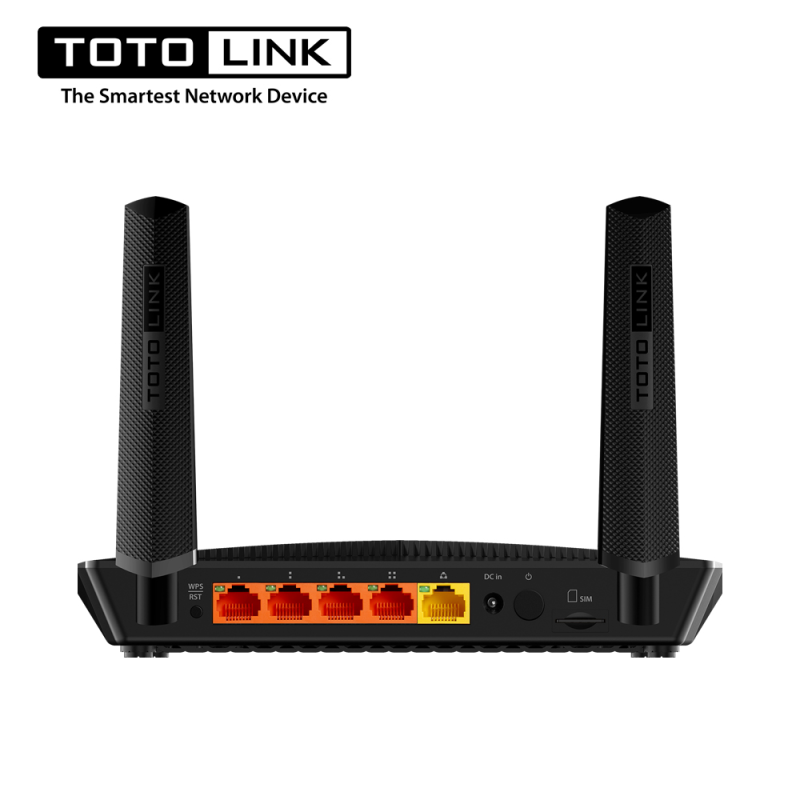

Product FeaturesInterface
- 1 * 10/100M WAN Port (With LED)
- 4 * 10/100M LAN Port(With LED)
- 1 * Standard SIM card slot,
- 1 * DC jack

Standards
- IEEE 802.11ac,
- IEEE 802.11a,
- IEEE 802.11b,
- IEEE 802.11g ,
- IEEE 802.11n

RF Frequency
- 2.4GHz/5GH

Data Rate
- 2.4GHz: Up to 300Mbps
- 5GHz: Up to 867Mbps

EIRP
- 2.4GHz < 20dBm
- 5GHz < 20dBm

Wireless Security
- WPA2/WPA Mixed
Reception Sensitivity
- 2.4G:11b 11M:-81dBm@8% PER
11g 54M:-68dBm@10% PER
11n HT20 MCS7:-65dBm@10% PER
HT40 MCS7:-62dBm@10% PER

- 5G: 11a 54M:-68dBm@10% PER
11n HT20 MCS7:-65dBm@10% PER
HT40 MCS7:-62dBm@10% PER
11ac VHT80 MCS9:-51dBm@10% PER

LTE chip(PCIe, optional, customizable)
- Qualcomm MDM9x07

LTE Network Type and Band (1)
- 4G:FDD-LTE B1,B3,B5,B8 TDD-LTE B38,B39,B40,B41
- 3G: TD-WCDMA B34,B39, WCDMA:B1,B8, CDMA2000*BC0,1XEVDO,
- 2G: GSM&900/1800

LTE Network Type and Band (2)
- 4G:FDD-LTE B1,B3,B5,B7,B8,B20, TDD-LTE B38,B40,B41
- 3G: WCDMA B1/B5/B8
- 2G: GSM B3,B8

LTE Network Type and Band (3)
- 4G:FDD-LTE B1,B2,B3,B4,B5,B7,B8,B28. TDD-LTE B40
- 3G: WCDMA B1,B2,B5,B8
Remark3 Years Warranty by Totolink

1x Totolink LR1200 AC1200 Wireless Dual Band 4G LTE Router
1x Power Adapter
1x RJ45 Ethernet Cable
1x Quick Installation Guide
1x SIM Adapter (Nano
Micro)
