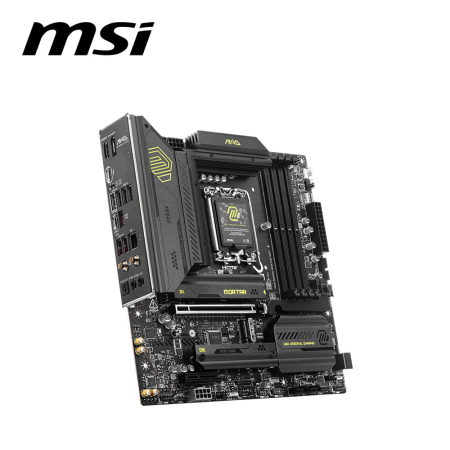

MSI MAG B860M Mortar WiFi Gaming Motherboard
MAG B860M MORTAR WIFI
RM969.00
- Intel B860 Chipset
- Socket LGA 1851 - Supports Intel® Core™ Ultra Processors (Series 2)
- 4 x DDR5 UDIMM, Maximum Memory Capacity 256GB
- 1 x HDMI, 1 x DP, 1 x Type-C (Support Display)
- 1 x PCI-E x16 slot (PCIe 5.0), 1 x PCI-E x4 slot (PCIe 4.0)
- Realtek® ALC897 Codec Audio
- 1 x M.2 PCIe 5.0, 2 x PCIe 4.0, 4 x SATA 6G
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
- Intel® Killer™ BE1750x Wi-Fi 7
- 3-Year Warranty by MSI Malaysia
1 x MSI MAG B860M Mortar WiFi Gaming Motherboard
1 x Quick Installation Guide
1 x EU Regulatory Notice
1 x EZ Wi-Fi Antenna
- Product Features
- INTEL B860 Chipset
- CPU / Processor
- Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851 - Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM - Storage
- 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G - Storage Capability
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Graphic Card
- 1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) - Operation System
- Support for Windows® 11 64-bit
- Audio & Video
- Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output - Network / Connectivity Technology
- Intel® Killer™ BE1750x Wi-Fi 7
Intel® Killer™ E5000 5Gbps LAN - Interface
- 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports - Dimensions
- mATX
243.84mmx243.84mm - Device Interfaces
- 4x USB 2.0 (Rear)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x HDMI 2.1
1x DisplayPort 1.4
1x Type-C Thunderbolt (DisplayPort 2.1 Capable)
